Cam lock type cold storage panel

Product Introduction:

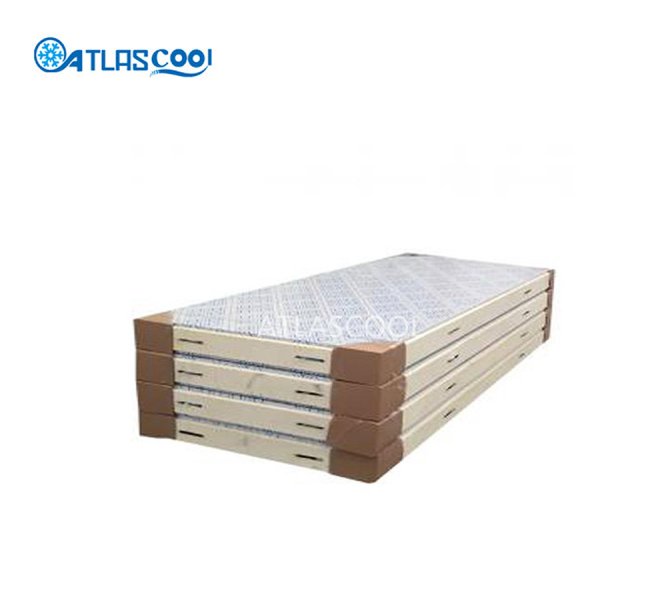

Cam-Lock Type Cold Storage Panels are insulated sandwich panels designed for the construction of cold storage rooms, walk-in coolers, freezer rooms, and temperature-controlled facilities.

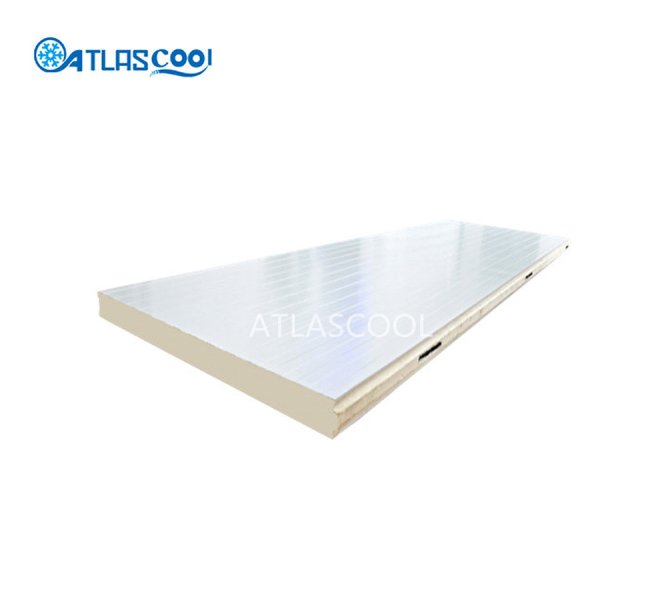

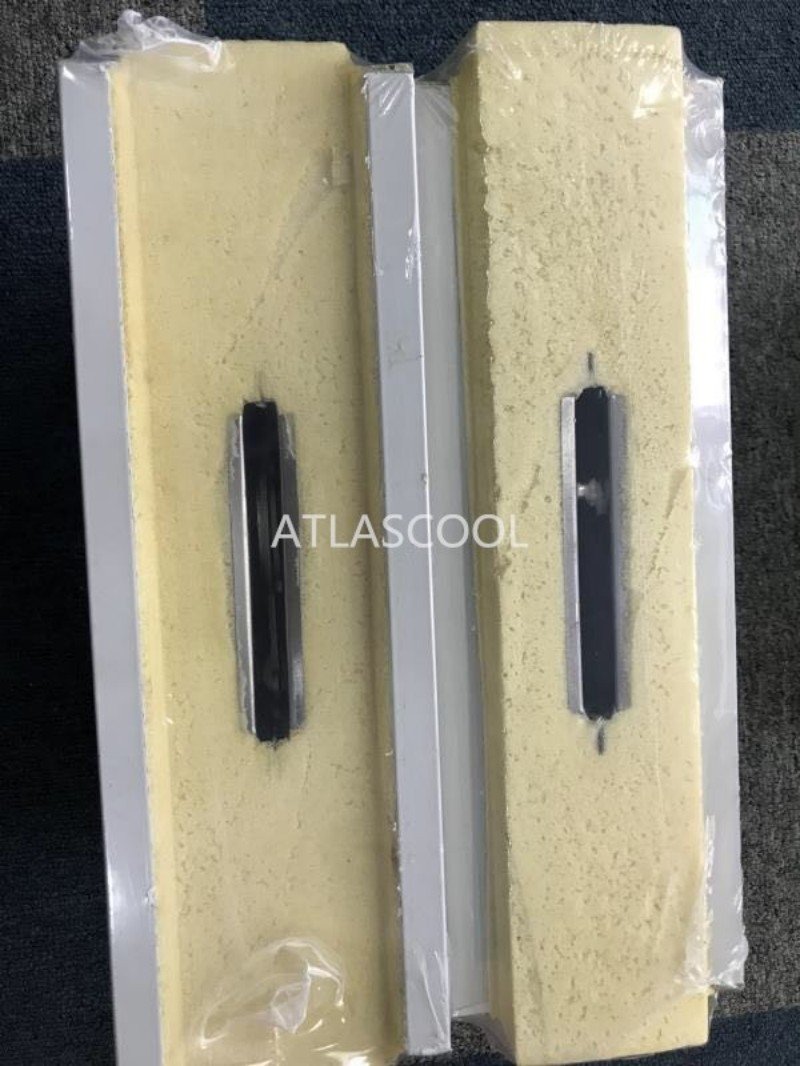

Each prefabricated panel is equipped with heavy-duty cam-lock assemblies along the panel edges. During installation, the built-in cam-lock mechanism pulls adjoining panels tightly together, providing a secure connection and making cold room assembly fast and convenient.

(0) Reviews

PRODUCT DESCRIPTION

Key Features

1. Convenient Installation

The polyurethane foam sandwich cam-lock panel is designed for efficient assembly of small and medium-sized cold storage rooms and insulated spaces.

Each prefabricated laminated panel is fitted with heavy-duty cam-locks, allowing adjacent panels to be securely connected during installation. The mechanical locking system helps simplify on-site assembly and reduce installation time.

2. High-Quality Insulation Performance

The panel uses high-density polyurethane foam as the insulation core, providing excellent thermal insulation for temperature-controlled environments.

Insulation Property	Specification
PU Foam Density	40–42 kg/m³
Thermal Conductivity	0.022 W/m·K
Insulation Type	Polyurethane (PUR) Foam

3. Durable Metal Surface

The polyurethane insulation core is enclosed by metal skins that provide protection, durability, and a clean finished surface.

Color-coated steel thickness options:

0.40 mm · 0.45 mm · 0.50 mm · 0.6 mm · 0.8 mm

Different steel thicknesses can be selected according to project requirements, application, and desired panel strength.

Cam-Lock vs. Tongue-and-Groove Panels

Both cam-lock and tongue-and-groove systems are widely used for insulated cold room construction. The appropriate system depends on the room size, temperature requirements, installation method, sealing requirements, and project design.

Feature	Cam-Lock Joint	Tongue-and-Groove Joint
Connection	Mechanical cam and pin assembly	Interlocking tongue-and-groove profile
Installation	Fast and convenient	Requires accurate alignment
Modularity	Excellent for modular construction	Generally suited to more permanent construction
Disassembly	Possible where designed for reuse	Generally more difficult
Customization	Highly suitable for customized layouts	Suitable for standard and customized applications
Small & Medium Rooms	Excellent choice	Suitable
Large Cold Rooms	Suitable when properly designed	Commonly used
Sealing	Mechanical connection with appropriate sealing	Interlocking joint with appropriate sealing
Main Advantage	Speed and flexibility	Continuous interlocking construction

Cam-lock panels are particularly suitable where fast installation, modularity, flexibility, and customized construction are important.

Tongue-and-groove systems can be suitable for permanent cold room construction where a continuous interlocking panel profile is preferred.

Regardless of the joint system, proper panel alignment, sealing, and professional installation are important for achieving the required insulation and airtightness.

Applications

Cam-Lock Type Cold Storage Panels are suitable for:

· Small and medium cold storage rooms

· Walk-in cooler rooms

· Freezer rooms

· Food storage rooms

· Meat and seafood storage

· Fruit and vegetable storage

· Dairy and beverage storage

· Restaurant cold rooms

· Supermarket cold storage

· Food processing facilities

· Insulated warehouses

· Distribution and logistics facilities

· Temperature-controlled rooms

Customized Cold Storage Panels

We manufacture Cam-Lock Type Cold Storage Panels according to individual project requirements.

Customers can select the appropriate panel thickness, steel thickness, dimensions, surface finish, and cold room configuration according to the intended application.
