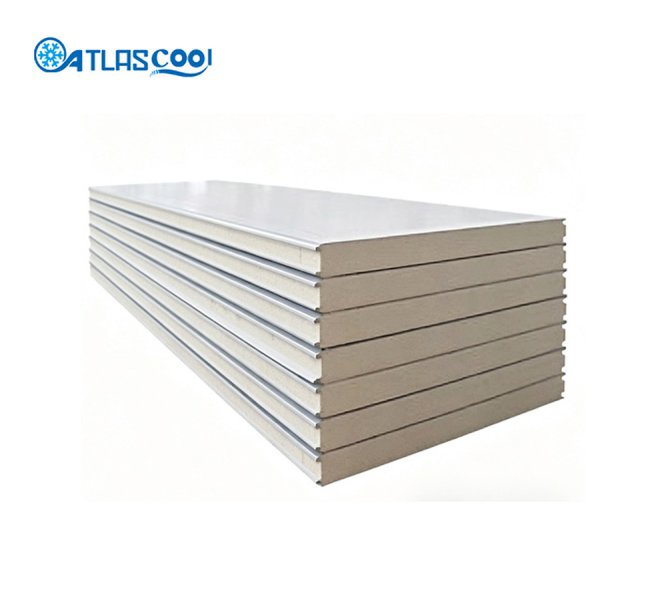

Pir metal insulation panels

Product Introduction:

A PIR metal insulation panel is an insulated sandwich panel consisting of a rigid PIR (Polyisocyanurate) foam core enclosed between two protective metal sheets. Also known as a PIR sandwich panel or PIR insulated panel, it provides excellent thermal insulation, good fire performance, and durable construction.

With its high insulation performance and lightweight structure, PIR sandwich panels are widely used for cold rooms, cooling rooms, walk-in cold rooms, freezer rooms, food processing facilities, refrigerated warehouses, and modular insulated walls and roofs. PIR panels can also be used for insulated flooring systems where high thermal insulation is required.

(0) Reviews

PRODUCT DESCRIPTION

Key Characteristics of PIR Sandwich Panels

Excellent Thermal Insulation

PIR panels provide a low thermal conductivity of approximately 0.022 W/m·K, helping minimize heat transfer and maintain stable internal temperatures.

Excellent Water Resistance

The closed-cell PIR foam core has low water absorption, helping maintain insulation performance in humid and temperature-controlled environments.

Lightweight Construction

PIR sandwich panels offer a high insulation-to-weight ratio, making them easier to handle, transport, and install compared with many conventional insulation materials.

Cost-Effective Insulation

PIR panels combine thermal performance, durability, and efficient installation, providing a cost-effective insulation solution for cold storage and industrial applications.

Strong & Durable Construction

The metal facings protect the PIR insulation core while providing additional mechanical strength, durability, and a smooth finished surface.

PIR Panel Construction

The standard PIR metal insulation panel consists of:

Metal Sheet + Rigid PIR Foam Core + Metal Sheet

Raw Materials

PIR Sandwich Panels are manufactured using high-quality pre-painted galvanized steel or aluminum sheets bonded to a rigid polyisocyanurate (PIR) foam core.

The PIR core provides excellent thermal insulation and enhanced fire performance compared with conventional PUR insulation. This makes PIR panels suitable for a wide range of temperature-controlled and industrial applications.

Available RAL Colors

PIR metal insulation panels are available in a range of RAL colors, allowing customers to match their cold room, warehouse, or building design requirements.

Common colors include:

· RAL 9002 – Grey White

· RAL 5010 – Gentian Blue

· RAL 9006 – White Aluminum

· RAL 9010 – Pure White

Custom RAL colors and surface finishes are also available upon request, subject to production requirements.

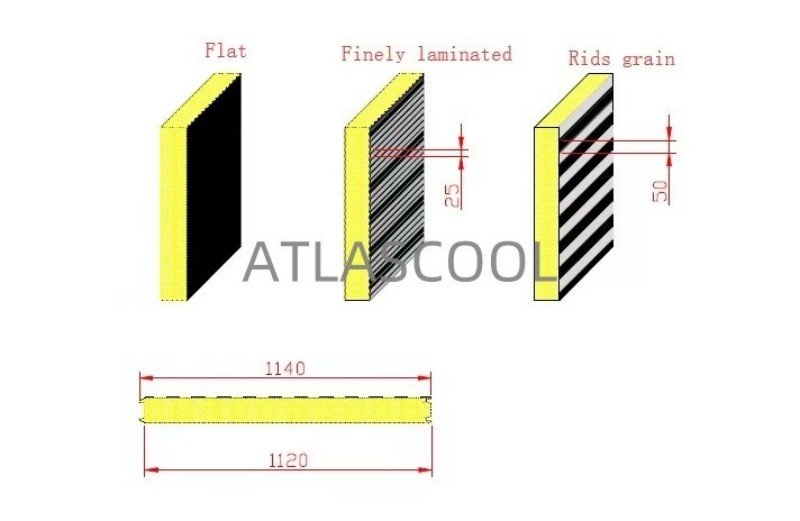

Available Steel Sheet Surface Types

PIR metal insulation panels are available with different steel sheet surface profiles to meet various application requirements:

Flat | Fine Embossed | Ribbed Embossed

Why Choose PIR Metal Insulation Panels?

PIR metal insulation panels provide an effective combination of high thermal insulation, good fire performance, water resistance, durability, and lightweight construction. They are designed to help maintain controlled temperatures while providing a reliable and long-lasting insulated enclosure.

We supply customized PIR sandwich panels for cold rooms, freezer rooms, warehouses, food processing facilities, and other temperature-controlled applications, with different panel thicknesses, dimensions, metal facings, colors, and connection options available according to project requirements.

Looking for PIR panels for your cold room project? Contact us for panel specifications, customized solutions, and a quotation.

TECHNICAL DATASHEETS

PIR Panel Technical Specifications

No.	Item	Unit	Technical Requirement
1	Density	kg/m³	40 ± 2
2	Thermal Conductivity	W/m·K	≤ 0.022
3	Combustion Performance	—	B1
4	Peel/Delamination – Core Material Surface	—	Uniform distribution
	Adhesive Area of Each Peeled Surface	%	≥ 90%
5	Bond Strength Between Core and Steel	MPa	≥ 0.1
