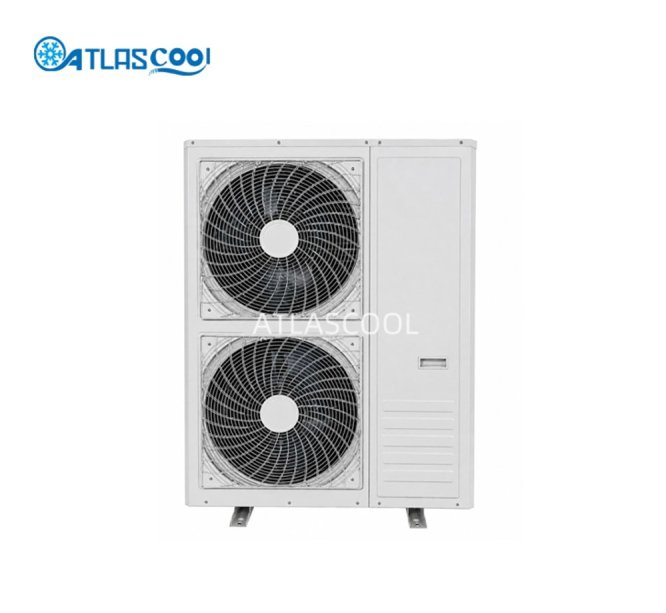

Copeland Digital Scroll Condensing Unit
Product Introduction:
The Copeland Digital Scroll Condensing Unit is an advanced refrigeration solution designed for applications requiring precise temperature control, flexible capacity modulation, high reliability, and energy-efficient operation.
Combining proven Copeland scroll compressor technology with a mechanical unloading system, the Digital Scroll compressor provides 10–100% stepless capacity modulation. It continuously adjusts the refrigeration capacity according to the actual cooling demand, helping maintain stable temperatures while reducing unnecessary energy consumption.
PRODUCT DESCRIPTION
Key Features & Advantages
Precise Temperature Control
Maintains stable temperature with accurate capacity adjustment.
10–100% Stepless Capacity Modulation
Continuously adjusts cooling capacity according to actual cooling demand.
High Reliability
Proven Copeland scroll technology ensures stable operation and long service life.
Simple System Structure
Mechanical unloading technology reduces system complexity and facilitates maintenance.
Energy-Efficient Operation
Matches refrigeration capacity to actual load, reducing unnecessary energy consumption.
Stable Cooling Performance
Provides reliable and consistent refrigeration for cold rooms and commercial refrigeration applications.
TECHNICAL DATASHEETS
Technical Parameters
Model | HP | Condenser Area (m²) | Fan Motor | Air Flow (m³/h) | Voltage | Noise at 10 m (dB) | Dimensions L×W×H (mm) | Discharge | Suction |
ZBD29KQE | 4 | 40 | 2×80W | 3,620 | 220V/50Hz | 42 | 1030×420×1275 | 1/2" | 7/8" |
ZBD38KQE | 5 | 40 | 2×80W | 3,620 | 220V/50Hz | 42 | 1030×420×1275 | 1/2" | 7/8" |
ZBD45KQE | 6 | 49 | 2×80W | 3,620 | 220V/50Hz | 42 | 1030×420×1275 | 1/2" | 7/8" |
ZBD48KQE | 7 | 49 | 2×80W | 3,620 | 220V/50Hz | 42 | 1030×420×1275 | 1/2" | 7/8" |
