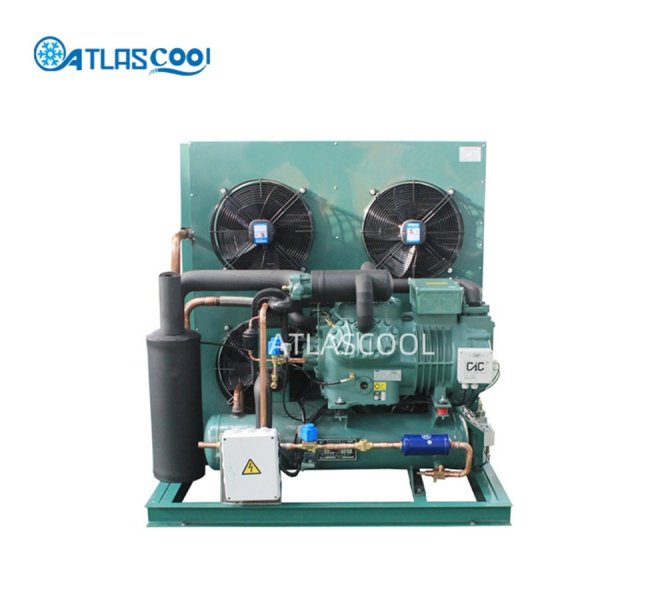

Bitzer Two-Stage Compressor Condensing Unit for Cold Storage

Core Advantages

Excellent Low-Temperature Performance

The two-stage compression process divides the total compression ratio into two stages, making the compressor suitable for demanding low-temperature applications.

It is particularly suitable for cold room temperatures from approximately -30°C to -45°C, where conventional single-stage systems may experience higher discharge temperatures and reduced cooling capacity.

Better Energy Efficiency

Under suitable low-temperature operating conditions, two-stage compression can provide better energy efficiency than conventional single-stage systems.

This makes it a suitable choice for 24-hour cold storage and continuous deep-freezing applications, helping reduce long-term operating costs.

Reliable Compressor Design

The compressor features an optimized suction passage and valve design for stable low-temperature operation. Optimized dynamic balancing helps reduce vibration and noise.

The semi-hermetic construction allows convenient maintenance, while PTC motor temperature protection and INT69 protection help protect the compressor during abnormal operating conditions.

Stable Cooling Capacity

The two-stage compression system helps maintain stable refrigeration capacity at low evaporating temperatures.

A liquid subcooling option can also be provided to further improve refrigeration capacity and system efficiency.

Applications

The Bitzer Two-Stage Compressor Condensing Unit is ideal for:

· Blast freezer rooms

· Freezing tunnels

· Deep-freezing cold rooms

· Cold storage below -30°C

· Frozen food storage

· Meat and seafood freezing

· Fish and poultry freezing

· Industrial low-temperature refrigeration

· Low-temperature process cooling
