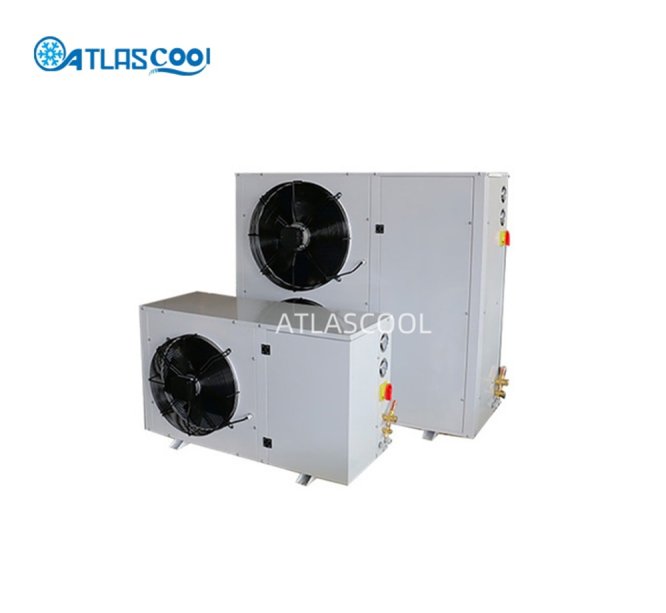

Invotech A2L Packaged Condensing Unit for Cold Storage
Product Introduction:
The Invotech A2L Packaged Condensing Unit for Cold Storage is a compact and energy-efficient refrigeration solution designed for cold rooms, walk-in coolers, supermarkets, food storage, and other commercial refrigeration applications.
Equipped with a reliable Invotech YM compressor and designed for R455A and R454C A2L low-GWP refrigerants, the unit provides stable refrigeration performance while supporting more environmentally friendly refrigeration solutions.
PRODUCT DESCRIPTION
Standard Features
· Low-Noise Condensing Unit
· Quick-Install Range: 2–7 HP
· Invotech YM Compressor
· Crankcase Heater
· 6-Pole Low-Noise Axial Fan Motor
· Emerson HP/LP Pressure Switch
· Emerson Filter Drier
· Liquid Receiver
· Pressure Gauges
· Acoustic Case Lining
· Service Valves
· Siemens Switch
· Schneider AC Contactor
· Schneider Overload Protector
· Oil Separator (Optional)
· Carlo Gavazzi Phase Protector
· Alco Fan Speed Controller (Optional)
· CE Marked
TECHNICAL DATASHEETS
Compressor Model | HP | Condenser Surface (m²) | Fan Qty. × Power (W) | Airflow (m³/h) | Noise at 10 m (dB) | Voltage | Dimensions L×W×H (mm) | Discharge | Suction |
YM34U1G-100 | 2 | 16.2 | 1 × 450 | 3,775 | 46 | 220V/50Hz | 1290 × 620 × 832 | 3/8" | 7/8" |
YM43U1G-100 | 2.5 | 21.4 | 1 × 450 | 3,775 | 46 | 220V/50Hz | 1290 × 620 × 832 | 3/8" | 7/8" |
YM49U1G-100 | 3 | 26.5 | 1 × 500 | 5,705 | 47 | 220V/50Hz | 1290 × 620 × 832 | 1/2" | 7/8" |
YM60U1G-100 | 3.5 | 31.8 | 1 × 500 | 5,705 | 47 | 220V/50Hz | 1290 × 620 × 832 | 1/2" | 7/8" |
YM70U1G-100 | 4 | 35.3 | 1 × 500 | 5,705 | 47 | 220V/50Hz | 1290 × 620 × 832 | 1/2" | 7/8" |
YM86U1G-100 | 5 | 42.8 | 2 × 500 | 11,410 | 52 | 220V/50Hz | 1290 × 620 × 1232 | 1/2" | 7/8" |
YM102U1G-100 | 6 | 52.0 | 2 × 500 | 11,410 | 52 | 220V/50Hz | 1290 × 620 × 1232 | 1/2" | 7/8" |
YM115U1G-100 | 7 | 59.9 | 2 × 500 | 11,410 | 52 | 220V/50Hz | 1290 × 620 × 1232 | 5/8" | 7/8" |
R455A & R454C A2L Refrigerants
The unit is designed for R455A and R454C, A2L low-GWP refrigerants that provide a more environmentally friendly option for modern refrigeration systems.
The refrigerant selection should be matched with the compressor model and the specific system design.
Applications
The Invotech A2L Packaged Condensing Unit is suitable for:
· Cold storage rooms
· Walk-in coolers
· Walk-in freezers
· Supermarkets
· Food storage
· Meat and seafood storage
· Restaurants and commercial kitchens
· Beverage storage
· Commercial refrigeration systems
· Small and medium cold room projects
