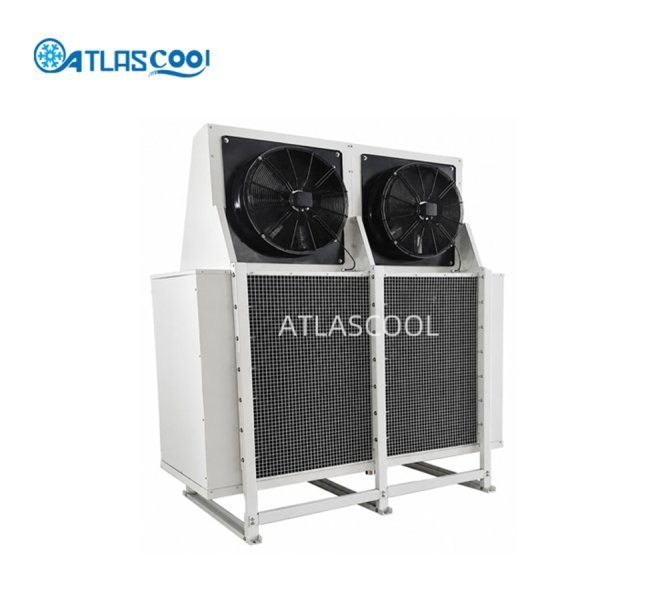

Floor Mounted Blast Freezer Evaporator
Product Introduction:
The Floor Mounted Blast Freezer Evaporator is specially designed for blast chilling and blast freezing applications requiring fast cooling, high airflow, and reliable low-temperature performance. It is widely used in food processing plants, seafood freezing facilities, meat processing industries, and quick freezing rooms.
With a high-efficiency heat exchanger and powerful fan system, the evaporator provides excellent heat transfer, strong airflow circulation, and uniform temperature distribution to shorten freezing time and maintain product quality. The floor-mounted vertical design allows flexible installation in large freezing rooms and industrial refrigeration systems.
PRODUCT DESCRIPTION
Key Features
· High-Efficiency Rapid Freezing
Designed for quick freezing applications with high cooling capacity and efficient heat exchange performance.
· Powerful Airflow Performance
High-pressure fans provide strong air circulation to ensure uniform temperature distribution and effective freezing.
· Industrial Low-Temperature Design
Suitable for demanding blast freezing environments and continuous industrial refrigeration operation.
· Flexible Customization
Cooling capacity, coil specifications, fan motors, refrigerants, and defrost methods can be customized according to project requirements.
TECHNICAL DATASHEETS
Technical Parameters
Model | Cooling Capacity (W) | Air Flow (m³/h) | Fan Qty | Fan Diameter (mm) |
ATSR24A12 | 5290 | 15000 | 2 | 500 |
ATSR25B12 | 6780 | 18400 | 2 | 550 |
ATSR26C12 | 11060 | 25600 | 2 | 630 |
ATSR44C12 | 17360 | 51200 | 4 | 630 |
ATSR46C12 | 25260 | 51200 | 4 | 630 |
ATSR64C12 | 26100 | 76800 | 6 | 630 |
ATSR66C12 | 38140 | 76800 | 6 | 630 |
ATSR68C12 | 47010 | 76800 | 6 | 630 |
Test Condition: Te = -38°C, ΔT = 6K
Refrigerant: R404A
Fin Spacing: 12mm
Different coil designs, fan configurations, refrigerants, and defrost methods can be customized according to project requirements.
