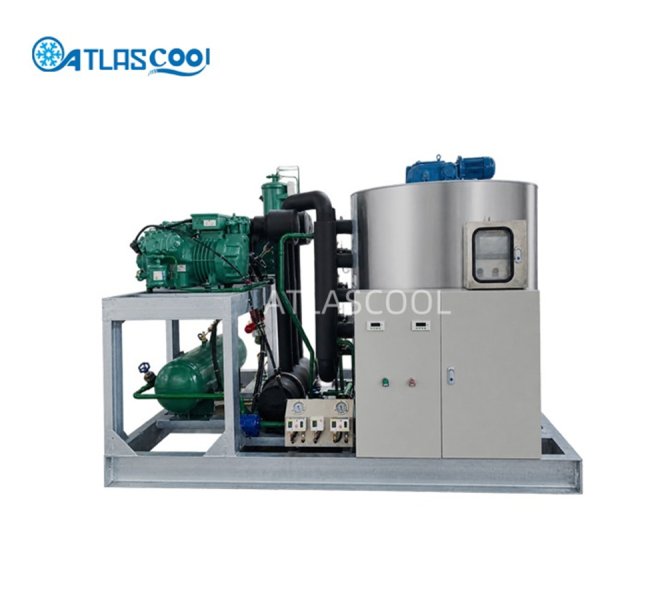

Industrial Flake Ice Machine
Product Introduction:
The Industrial Flake Ice Machine is designed for large-scale ice production applications, providing a reliable and efficient cooling solution for seafood processing, fish preservation, meat processing, food factories, concrete cooling, and industrial cooling applications.
The flake ice features a large heat exchange surface area, enabling fast cooling performance and excellent temperature control. The dry, loose ice flakes are ideal for continuous cooling applications and help maintain the quality of temperature-sensitive products.
PRODUCT DESCRIPTION
Key Features
· High Ice Production Capacity
Produces 5–30 tons of flake ice per day for continuous industrial cooling applications.
· Fast Cooling Performance
Thin 1.6–2.3 mm flake ice provides a large heat exchange area for rapid cooling and efficient heat transfer.
· Loose & Dry Ice Flakes
Dry, soft, and non-stick ice flakes prevent clumping and support automatic ice conveying systems.
· Durable Evaporator Design
The 16MnR low-temperature alloy steel evaporator provides excellent heat transfer performance, strength, and long service life.
· Food-Grade Stainless Steel Components
304 stainless steel ice blade and main shaft ensure corrosion resistance and reliable operation.
· 24/7 Continuous Operation
Designed for stable and uninterrupted ice production in demanding industrial environments.
TECHNICAL DATASHEETS
Specifications of Industrial Flake Ice Machine
Model | Ice Output (Ton/24h) | Cooling Capacity (kW) | Total Power (kW) | Dimension (mm) |
ATI-15T | 15 | 101.5 | 54 | 3000×2100×2000 |
ATI-20T | 20 | 131.4 | 64.5 | 3500×2100×2200 |
ATI-25T | 25 | 164.5 | 81 | 3500×2100×2500 |
ATI-30T | 30 | 181 | 90.1 | 4000×2100×2500 |
Applications
The Industrial Flake Ice Machine is widely used in:
· Seafood processing and fish preservation
· Fishing industry and marine applications
· Meat and poultry processing plants
· Fruit and vegetable cooling
· Food processing factories
· Concrete temperature control
· Chemical industry cooling applications
· Industrial refrigeration systems
With high efficiency, reliable performance, and continuous ice production capability, the Industrial Flake Ice Machine provides an ideal ice-making solution for modern industrial cooling requirements.
