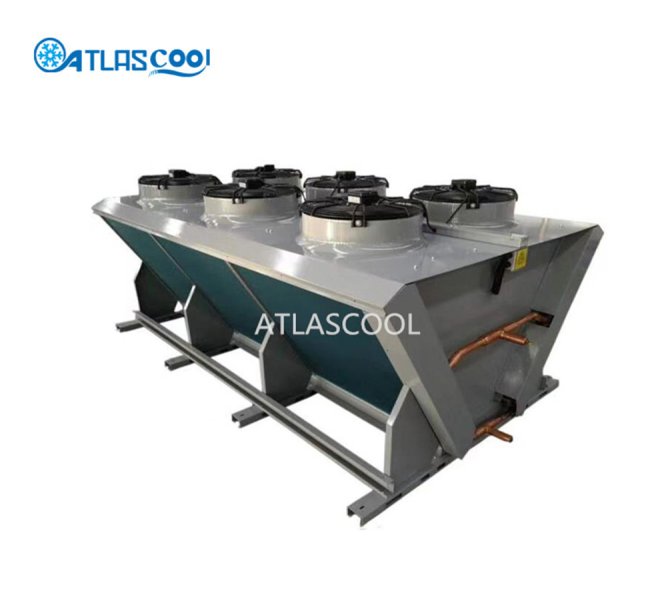

Air Cooled Condenser
Product Introduction:
The Air Cooled Condenser is a high-efficiency heat rejection device designed for Freon-based refrigeration systems. It uses ambient air to cool and condense refrigerant vapor into liquid refrigerant, providing reliable heat transfer performance for refrigeration applications.
Atlas Air Cooled Condensers are available in side discharge and top discharge designs. The unit features a durable galvanized steel casing with powder coating, high-efficiency copper tube and aluminum fin coils, and excellent corrosion resistance.
Each condenser is tested under 2.5 MPa air tightness pressure to ensure reliable operation. With efficient heat exchange, low noise performance, and flexible installation options, it is widely used in cold storage, food processing, commercial refrigeration, and industrial refrigeration systems.
PRODUCT DESCRIPTION
Key Features
· High-Efficiency Heat Exchange
Uses copper tube and aluminum fin coils with mechanical expansion technology for excellent heat transfer performance.
· Anti-Corrosion Design
Equipped with hydrophilic aluminum foil anti-corrosion fins and a powder-coated galvanized steel casing for durability and long service life.

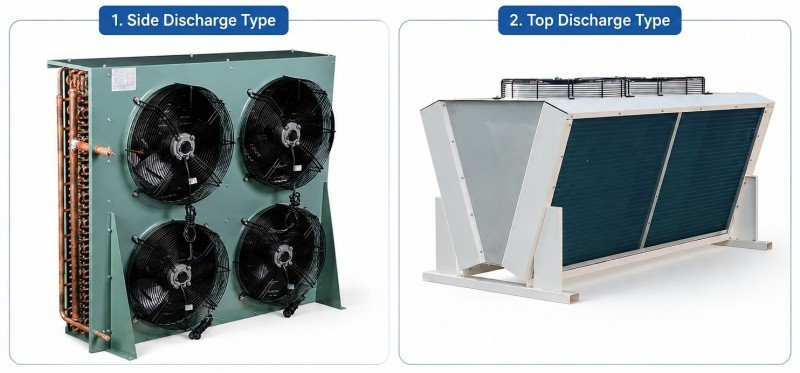

· Flexible Air Discharge Options
Available in side discharge and top discharge configurations to meet different installation requirements.
· Low Noise Operation
Side discharge models use large airflow, low-speed motors for quiet operation, suitable for noise-sensitive applications.
· High Cooling Capacity
Top discharge models feature a larger air-facing surface area and efficient heat dissipation, ideal for larger refrigeration systems.
TECHNICAL DATASHEETS
Technical Parameters
Model | Heat Exchange Capacity | Heat Exchange Area | Axial Fan | Dimensions (L×W×H) |
AFNV-70 | 22.4 kW | 70 m² | 2 × φ500 | 1455 × 976 × 952 mm |
AFNV-105 | 33.7 kW | 105 m² | 2 × φ550 | 1455 × 976 × 952 mm |
AFNV-140 | 44.9 kW | 140 m² | 2 × φ550 | 1455 × 976 × 952 mm |
AFNV-175 | 55.4 kW | 175 m² | 2 × φ630 | 1755 × 1050 × 1050 mm |
AFNV-195 | 62.1 kW | 195 m² | 2 × φ630 | 1755 × 1050 × 1050 mm |
AFNV-260 | 83.2 kW | 260 m² | 3 × φ630 | 2555 × 1050 × 1050 mm |
AFNV-295 | 93.4 kW | 295 m² | 3 × φ630 | 2555 × 1050 × 1050 mm |
AFNV-320 | 101.0 kW | 320 m² | 3 × φ630 | 2555 × 1050 × 1050 mm |
AFNV-350 | 110.0 kW | 350 m² | 3 × φ630 | 2555 × 1050 × 1050 mm |
AFNV-365 | 116.5 kW | 365 m² | 3 × φ630 | 2555 × 1050 × 1050 mm |
AFNV-405 | 130.0 kW | 405 m² | 4 × φ630 | 3155 × 1112 × 1144 mm |
AFNV-505 | 162.0 kW | 505 m² | 4 × φ630 | 3155 × 1112 × 1144 mm |
Applications
The Air Cooled Condenser is widely used in:
· Cold storage refrigeration systems
· Walk-in freezer and chiller systems
· Food processing facilities
· Commercial refrigeration equipment
· Industrial refrigeration systems
· Refrigeration condensing units
With reliable performance, efficient heat transfer, low noise operation, and flexible installation options, the Air Cooled Condenser provides an effective and durable heat rejection solution for modern refrigeration systems.
