When considering building a cold storage room, we often ignore the ground insulation of the cold storage room. While walls and ceiling panels, and refrigeration systems often get much of the attention, flooring is just as important for cold storage rooms. Choosing the best flooring for a cold storage room is crucial for maintaining thermal efficiency, hygiene, safety, and durability. The right floor will depend on several factors, including temperature range, usage (foot traffic, forklift movement), hygiene standards, and budget.
Different cold rooms need different floor insulation.
Chiller Room (0°C to 10°C) – Moderate insulation and moisture control.
Freezer Room (-25°C to -15°C) – High insulation, vapor barriers, and frost resistance.
Blast Freezer (-30°C or lower) – Extremely high insulation, anti-slip, durable surface.
The best cold room floor should offer:
Thermal Insulation – To prevent heat transfer and reduce energy loss.
Moisture & Vapor Barrier – Prevents condensation, frost buildup, and mold.
Load-Bearing Strength – Withstands racks, trolleys, or forklifts.
Non-Slip Surface – Essential for worker safety.
Hygienic & Easy to Clean – Especially for food storage.
Durability & Crack Resistance – Especially under freeze/thaw cycles.
5 Main Cold Room Floor Options
1, Insulated Concrete floor with Epoxy Coating
Best For: Heavy-duty industrial cold rooms
Concrete floors reinforced with rigid insulation (like extruded polystyrene) are common in large-scale cold rooms. The insulation layer helps prevent heat loss and frost heave.
Advantages:
Thermal Insulation: Includes a layer of rigid insulation (PU/PIR panels) to reduce heat transfer from the ground. Essential for temperature stability and energy efficiency.
Excellent structural support for heavy loads: Supports heavy loads such as pallet racks, trolleys, and forklifts. Suitable for industrial cold rooms.
Long lifespan with proper sealing
Can be combined with floor heating systems
Disadvantages:
Complex Installation Process: Requires multiple layers (sub-base, vapor barrier, insulation, concrete, coating), precise leveling, and proper curing time. Mistakes during installation can lead to performance issues.
Risk of Frost Heave (in freezers): If the insulation or vapor barrier fails, ground moisture can freeze and expand under the slab, causing cracks or lifting. Requires optional underfloor heating or proper frost protection design.
2, PVC or Vinyl Flooring
PVC (Polyvinyl Chloride) or Vinyl flooring is a flexible, synthetic floor covering often used in chiller rooms, dry storage areas, and low-traffic cold rooms. It is a cost-effective, easy-to-clean option that provides a smooth, hygienic surface for light-duty cold storage room.
Advantages:
Hygienic & Easy to Clean: Smooth, seamless surface (when sheet vinyl is used) prevents dirt buildup and allows fast sanitization.
Quick & Easy Installation: Fast to install, with minimal downtime;
Disadvantages:
Not Suitable for Freezers rooms: Can crack, shrink, or delaminate at very low temperatures (below -10°C).
Poor Load Resistance: Easily dents or tears under heavy equipment, pallet jacks, or forklifts.

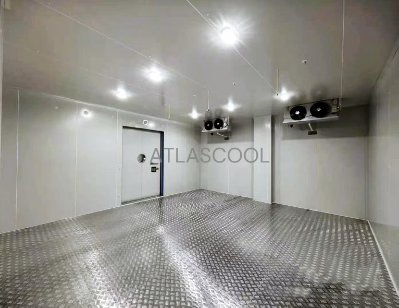

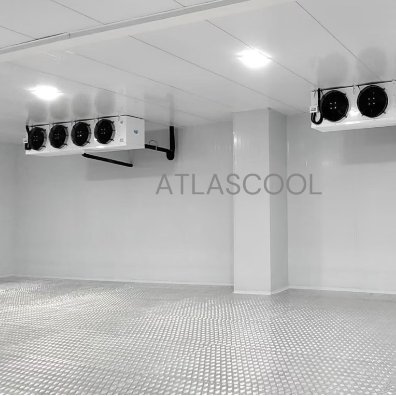

3, Stainless Steel or Aluminium Checkered Plate over Insulation
This flooring system involves placing a checkered (tread) metal plate, typically made of stainless steel or aluminium, on top of insulation panels in a cold room. It’s common in walk-in freezers, fish storage, meat processing, and logistics areas where durability, hygiene, and slip resistance are critical.
Advantages:
Corrosion Resistant: Especially in stainless steel or anodized aluminium; suitable for wet and salty environments like seafood storage.
Quick to Install & Replace: Panels are often modular—easier to install and maintain than poured floors.
Lightweight Option: Aluminium is lighter than concrete or screed, which is useful for modular or mobile cold rooms.
Disadvantages:
Higher Material Cost: Stainless steel is expensive; aluminium is more affordable but less durable.

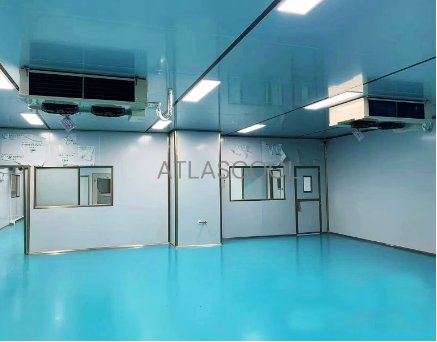

4, Epoxy Resin Flooring
Epoxy resin flooring is a durable, seamless, and chemical-resistant floor system made by mixing epoxy resin with a hardener, which cures into a hard plastic-like coating. It’s commonly applied over concrete floors to improve performance, appearance, and hygiene—especially in chiller rooms, dry cold rooms, food prep areas, and laboratories.
5, Polyurethane (PU) Screed Flooring
Polyurethane (PU) screed flooring is a heavy-duty, cementitious resin floor system made by combining polyurethane resin with aggregates and additives. It is designed to provide a seamless, highly durable, and chemically resistant surface, ideal for demanding environments such as cold storage rooms, food processing facilities, pharmaceutical areas, and commercial kitchens.
What to consider when installing cold storage room floors?
Beyond selecting the right material, proper installation is necessary to maximize the floor’s performance and longevity. Here’s what to consider:
Substrate preparation: A well-prepared substrate ensures a strong bond between the floor coating and the concrete base. Any moisture, cracks, or uneven surfaces should be addressed before installation.
Insulation and frost protection: Proper insulation prevents frost heave, which can cause the flooring to lift and crack. A vapor barrier may also be necessary to control moisture buildup and frost.
Installation conditions: Temperature and humidity levels impact the curing process of PU concrete flooring and epoxy coatings. Installation should be scheduled during suitable conditions to ensure optimal adhesion and durability.
Maintenance and cleaning requirements: Choosing a flooring solution that aligns with the facility’s cleaning and maintenance protocols helps maintain its integrity and safety.
