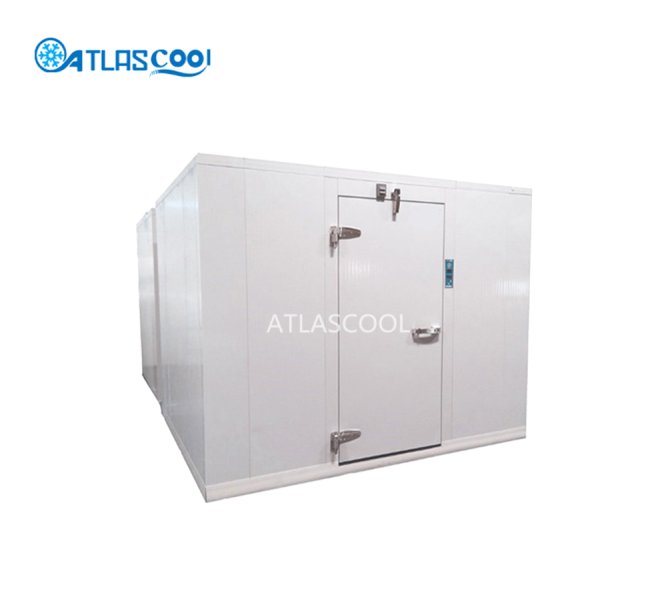

Walk in cold storage room

Product Introduction:

A Walk-In Cold Storage Room is a large refrigerated storage space designed to maintain controlled temperatures for the safe storage of food, beverages, fruits and vegetables, meat, seafood, dairy products, pharmaceuticals, and other temperature-sensitive goods.

Our walk-in cold storage rooms combine high-performance insulated sandwich panels, insulated cold room doors, and an energy-efficient refrigeration system to provide reliable temperature control for commercial and industrial applications.

(0) Reviews

PRODUCT DESCRIPTION

Walk-In Cold Storage Temperature Range

The required temperature depends on the type of product and storage application.

Application	Typical Temperature
Fresh Fruit & Vegetable Storage	+2°C to +8°C
Chilled Food Storage	0°C to +5°C
Meat & Seafood Chilling	0°C to +2°C
Dairy Product Storage	+2°C to +6°C
Frozen Food Storage	-18°C to -25°C
Low-Temperature Storage	-25°C to -40°C

Actual operating temperature should be determined according to the product, room size, storage capacity, ambient conditions, and refrigeration system design.

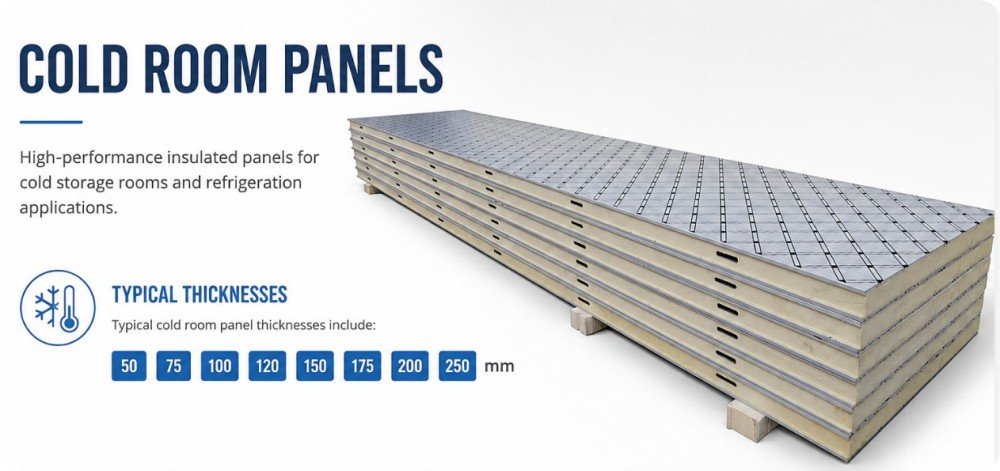

Walk-In Cold Storage Room Construction

The room enclosure is constructed using insulated sandwich panels with the following structure:

Available Panel Options

· PUR insulated sandwich panels

· PIR insulated sandwich panels

· Cam-Lock panels

· Fast-Fit panels

· Color-coated steel

· Galvanized steel

· Stainless steel

· Aluminum

Typical panel thicknesses include:

50 / 75 / 100 / 120 / 150 / 175 / 200 / 250 mm

The appropriate panel thickness is selected according to the required storage temperature, room dimensions, ambient conditions, and application.

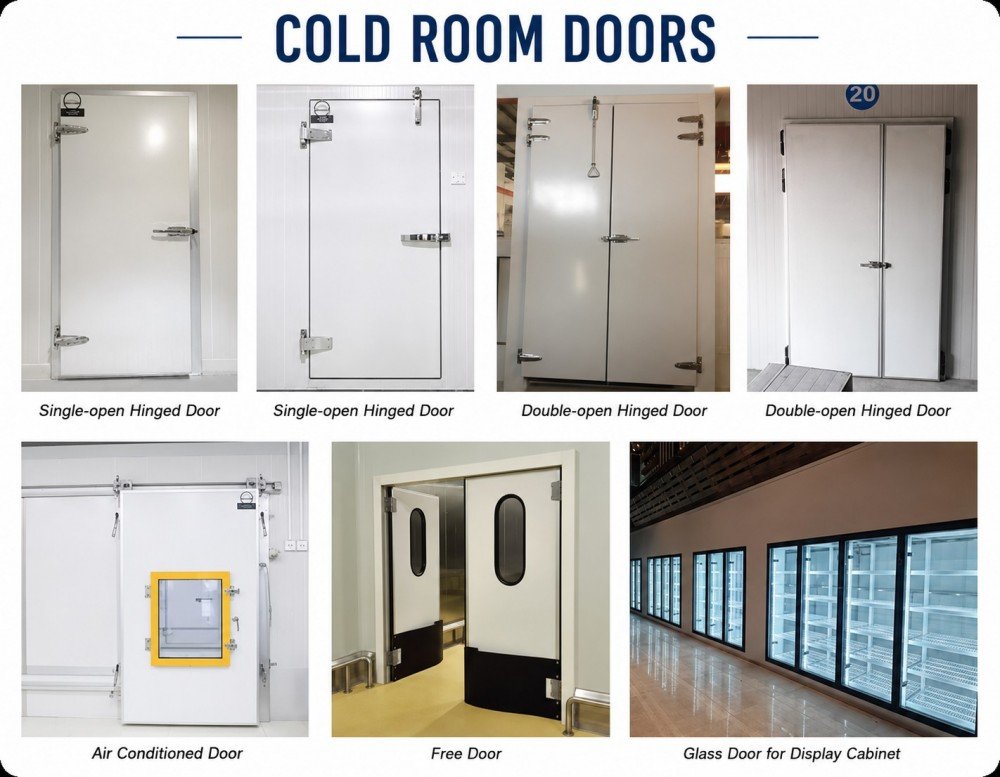

Walk-In Cold Storage Doors

Reliable door sealing is important for maintaining the internal temperature and reducing cold air leakage.

Available door configurations include:

· Hinged / swing cold room doors

· Manual sliding doors

· Automatic sliding doors

· Customized cold room doors

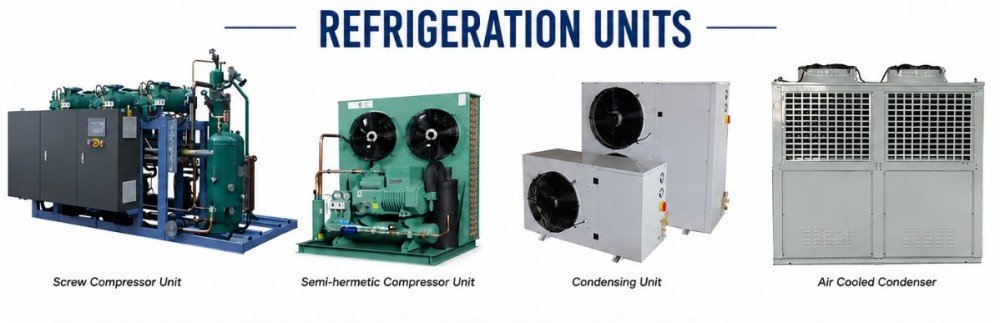

Refrigeration Units

The refrigeration system is selected according to the required cooling capacity, room volume, target temperature, product load, ambient temperature, and operating conditions.

Our many years of cold room refrigeration experience will help us design a economic refrigeration system to your product, no more and no less.

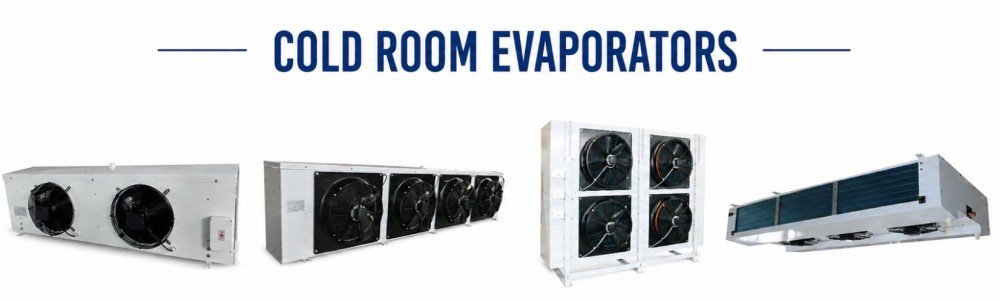

Cold Room Evaporators

High-efficiency evaporators / air coolers are selected to provide effective air circulation and uniform temperature distribution throughout the storage room.

Evaporator selection takes into account:

· Room temperature

· Cooling capacity

· Room dimensions

· Airflow requirements

· Defrost method

· Product storage conditions

Refrigeration Controls

Control systems can be configured to manage:

· Room temperature

· Compressor operation

· Evaporator fans

· Defrost cycles

· Door alarms

· Safety protection

· Refrigeration system operation

Applications

Walk-In Cold Storage Rooms are widely used for:

· Fresh fruit and vegetable storage

· Meat and poultry storage

· Seafood and fish storage

· Dairy products

· Food processing

· Beverage storage

· Supermarkets and retail

· Hotels and restaurants

· Pharmaceutical storage

· Cold chain logistics

· Refrigerated distribution centers

· Agricultural product storage

· Food and beverage manufacturing

Customized Walk-In Cold Storage Solutions

We manufacture Walk-In Cold Storage Rooms according to individual project requirements. The complete system can be customized based on room dimensions, storage temperature, product type, storage capacity, panel thickness, insulation material, door type, refrigeration capacity, and site conditions.

From insulated sandwich panels and cold room doors to refrigeration units, evaporators, condensers, controls, and accessories, we provide complete cold storage solutions for commercial and industrial applications.
