Shandong Atlas Refrigeration Technology Co.,Ltd.

Cold Room Wall Panels Pu Panel
Cold Room Wall Panels Pu Panel
Cold Room Wall Panels Pu Panel

Cold Room Wall Panels Pu Panel

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 10 Cubic Meter
Delivery Time: 10 Days

Contact Now Add to Basket

Basic Info

    Model No.: Atlascool

    Warranty: 3-5 Years

    Certification: CE, CCC

    Application: Cold Room, Cold Storage, Food Factory

    Cold Room Panel Cover: Color Metal,aluminum,stainless Steel Etc

    Width Of Panel: 960mm/1000mm

    Cold Room Panel Thickness: 50mm/75mm/100mm/120mm/150mm/200mm

    Length Of Panel: According To The Customer Request

    Place Of Origin: Shandong China

    Panel Foam Density: 40-42kg/m³

    Temperature Range: -50~50 Degree

    Thickness Of Color Steel: 0.476, 0.5,0.6,0.7,0.8 Mm

Additional Info

    Packaging: export package

    Transportation: Ocean

    Port: Qingdao,Xingang

Product Description

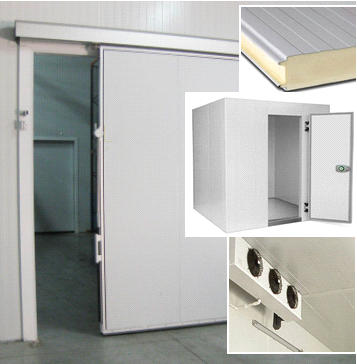

Cold Room Wall Panels

Cold Room Panels are extremely important because they allow the Cold Room to function properly. Cold Room Panels should meet all the necessary requirements to keep the Cold Storage Room up to efficient working standards. Uniquely designed, Cold Room Panels are perfectly suited and highly preferred for low temperature applications.

Key Features:
Rigid structure and reliability
Long term durability
Preserves specific room temperature required to maintain product quality
Cold Room wall Panels maintain a proper level of thermal insulation with air tightness
Cold Room Panels installation is quick and requires minimum man-power
Cold Room Panels are perfectly hygienic and safe
Easily movable and easy to handle
Covers all the requirements of cold room storage
Cold Room Panels provide proper protection to the products stored inside the cold room
Minimum waste, energy saving and eco-friendly

cold room panels

cold storage panel

Feature:
1, Convenient installation
Polyurethane foam sandwich Cam-lock panel is specially designed for assembling small or medium-size Cold Storage, and other rooms, and, warehouse that need insulation. Every piece of pre-fabricated laminated panel is fitted with heavy duty locks, located on four sides.

2, Best quality and performance
PU foam density:40-42kg/m³
Thermal Conductivity: 0.022W/M-K
Covering color steel metal thickness: 0.4mm, 0.45mm, 0.5mm, 0.55mm, 0.6mm

3, Precise and Perfect details

Thickness: 50mm, 75mm, 100mm, 120mm, 150mm,175mm,200mm optional.
Covering color steel metal thickness: 0.4mm, 0.45mm, 0.5mm, 0.55mm, 0.6mm


1, Convenient installation

2, Best quality and performance

Specification

Width

Standard width 960mm, or customized and maximum 1200mm.

Length

As customers' requirements, maximum 12000mm.

Thickness

50 mm

≥ 15ºC

75 mm

≥ 10ºC

100 mm

≥ -15ºC

150 mm

≥ -25ºC

200 mm

≥ -35ºC

250 mm

≥ -45ºC

The most suitable thickness will be suggested according to the size and
temperature requirements, or customers` requirements.

Surface material

0.3~1mm Color steel sheet(pre-painted iron sheet)

0.4~1mm stainless steel sheet

0.5~3mm aluminum sheet

0.5~2mm galvanized steel sheet

Core material

PU(polyurethane ) / PUR(polyisocyanate ) / PIR(polyisocyanurate)

Joint system

Cam lock, tongue & groove, hook & pin

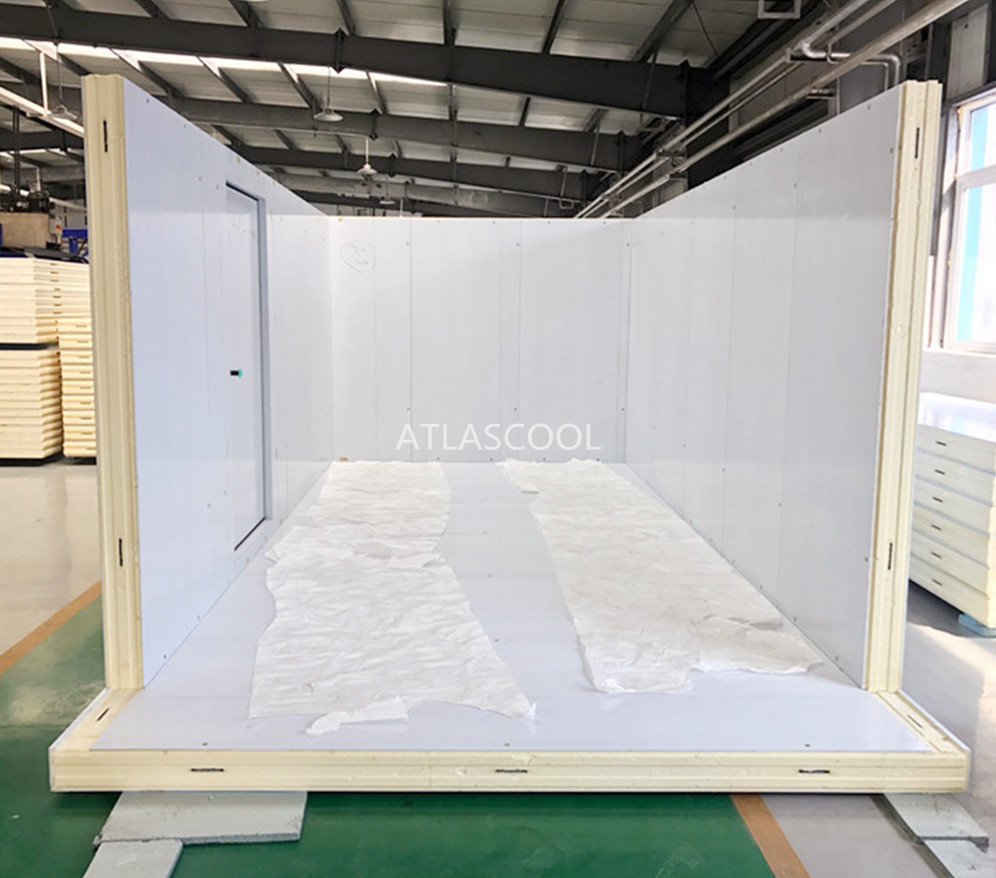

cold storage room insulation panelcold room panel

cold room panels

Applications:

cold room pu panelpu panel for cold room




Looking for ideal Insulated Wall Panels Cold Room Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cold Room Pu Panel are quality guaranteed. We are China Origin Factory of Pu Panel for Cold Room. If you have any question, please feel free to contact us.
