Shandong Atlas Refrigeration Technology Co.,Ltd.

Walk in Blast Chiller Rooms and Freezer
Walk in Blast Chiller Rooms and Freezer
Walk in Blast Chiller Rooms and Freezer

Walk in Blast Chiller Rooms and Freezer

Payment Type: L/C,T/T
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Add to Basket

Basic Info

    Model No.: Atlascool

    Refrigerant: Freon

    Warranty: 1-2 Years

    Certification: ISO, CE, CCC

    Condition: New

    Temperature: -40~+15 Degree

    Size: Customized Size

    Power: Energy Saving

    After Sales Service: Engineers Available To Service Overseas

    Cold Room Panel Thickness: 75mm,100mm,120mm,150mm,175mm,200mm

    Cold Room Type: PU,PRU,PIR,PUF

    Compressor Brand: Bitzer, Copeland, Frascold Etc.

Additional Info

    Packaging: export package

    Transportation: Ocean

    Port: Qingdao,Xingang

Product Description

Walk-in chiller and walk-in freezer are standard Modular Cold Room chamber to cool or freeze food, beverage, meat, fruit, vegetable, pharmaceutical material, chemical or other goods stored inside. Different standard dimension of cold-room length, width, height for the walk-in fridge of walk-in refrigerator, chiller & freezer are available.
Storage temperature of the walk in cooler & freezer can be optional -5 ℃ or -20 ℃ for the refrigerating storage or freezing storage of fresh vegetable & fruit or frozen food.
The modular walk-in freezer & chiller Cold Room can easily be disassembled and reassembled if required to be moved to a different location.
The cold room panel of the walk in cooler and Walk In Freezer chamber is made of high density polyurethane with an average density of 40kg/m3 for good insulation.
Cam lock tongue and groove panel cold room design with gasket makes the walk-in cooler & walk-in freezer perfectly sealed.

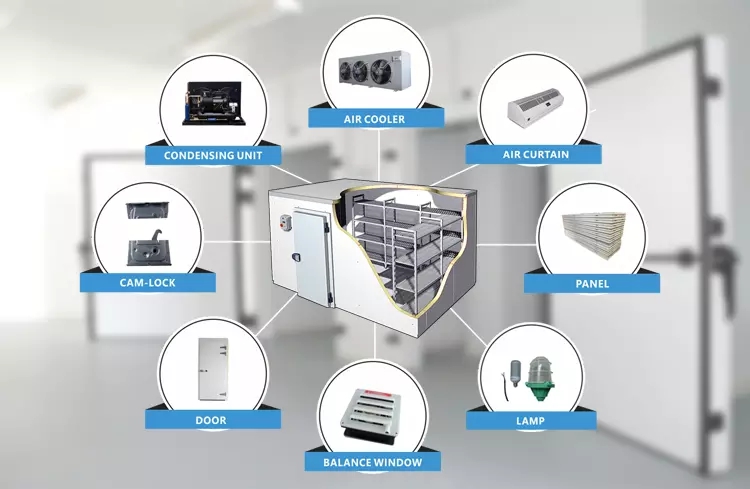

Condensing unit and fan coil unit. Digital thermostat enables precise temperature control.
Mini Cold Room

Advantges: Leading refrigeration technology, saving more energy and full automatic control, latest refrigeration technology and less power consume refrigeration system can save your more operation costs. We can do customized Cold Storage Room size and dimension according to customers' requirements.

Features:
1, Superior quality; With advanced equipment and innovation technology, we have complete production management, quality control, and after-sale service system.
2, Excellent cooling efficiency; Our many years of cold room refrigeration experience will help us design a economic refrigeration system to your product, no more and no less.
3, Factory price; Our own factory to assure you reasonable price.
4, Perfect details; World famous brand refrigeration accessories, guarantee long use cycle.


Ice Cold Room

Walk in Chiller Room Panels

Cold Room Panels Specification

Width

Standard width 960mm, or customized and maximum 1200mm.

Length

As customers' requirements, maximum 12000mm.

Thickness

50 mm

≥ 15ºC

75 mm

≥ 10ºC

100 mm

≥ -15ºC

150 mm

≥ -25ºC

200 mm

≥ -35ºC

250 mm

≥ -45ºC

The most suitable thickness will be suggested according to the size and
temperature requirements, or customers` requirements.

Surface material

0.3~1mm Color steel sheet(pre-painted iron sheet)

0.4~1mm stainless steel sheet

0.5~3mm aluminum sheet

0.5~2mm galvanized steel sheet

Core material

PU(polyurethane ) / PUR(polyisocyanate ) / PIR(polyisocyanurate)

Joint system

Cam lock, tongue & groove, hook & pin

Walk in Chiller doors
1.Swing door and sliding door for choice.
2.Swing door:manual opened,automatic,etc.
3.Door board made with special pressing technology PU material.
4.Door frame:color steel or stainless steel.
5.Surface material:color steel or stainless steel with protecting film.
cold room doors

Walk in Chiller refrigeration units

Compressor brand Bitzer, Copeland, Frascold etc.
Air Cooled Type Conderser Fan
Water Cooled Type water cooled condenser and cooling tower
Evaporative Cooled Type Evaporative Condenser

CHILLER UNITCHILLER ROOM UNIT


We has long years of experience in the refrigeration industry, our engineers are all graduated from refrigeration major in university. We will analyze your product load, geographic location and facility usage. Our many years of cold room refrigeration experience will help us design a economic refrigeration system to your product. [Produce" requires a different approach from Pharmaceuticals or Poultry. We will propose the right equipment to do the job, no more and no less.


COLD STORAGE ROOM




Looking for ideal Walk in Chiller Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Walk in Blast Chiller are quality guaranteed. We are China Origin Factory of Walk in Chiller and Freezer. If you have any question, please feel free to contact us.

Product Categories : Cold Rooms > Chiller Room
